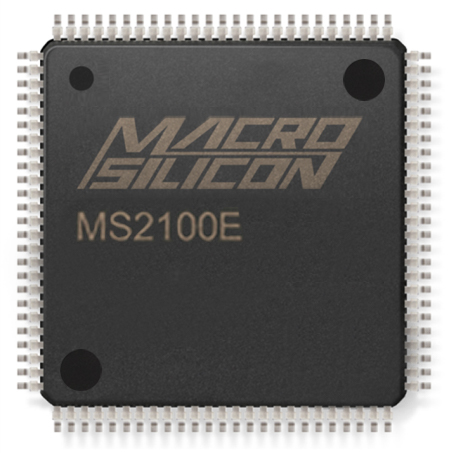

MS2100E

————————————————————————————————————


MS2100E is a video & audio processor chip. It can convert AV& Video signals to USB signal. It also can covert audio signal to USB signal, USB Video and Audio signals follow UVC and UAC protocol. It can play or record Video and Audio signals through USB interface. As the built-in MCU, using the ROM code and without driver installation, MS2100E is very simple to use.











   Main Function and Features



Video

Rom code included

Supports AV full format video input

USB2.0

Supports S-Video full format video input

On-chip high speed USB function

Supports NTSC(J,M, 4.43), PAL(B, D, G, H, I, M, N, 60)

USB video followed UVC protocol

Automatic format & interface detection

USB audio followed UAC protocol

On-chip 3D decoder/De-interlace/Scalar

Clock

Module

Only one 12M crystal needed

Supports Brightness/Contrast/Saturation/Hue adjustment

It can output 12.288M clock for external audio ADC

Five Output resolutions:

720×480/720×576/640×480/320×240/160×120

Power & Reset

Audio

On-chip 3.3V&1.2V regulator

Supports external audio ADC

On-chip power on reset

USB UAC output 48kHz stereo

Package

MCU

LQFP-100plastic(14mm×14mm)

On-chip 1T 8051 MCU

PB-free and RoHS

On-chip ROM/RAM/IO/Timer

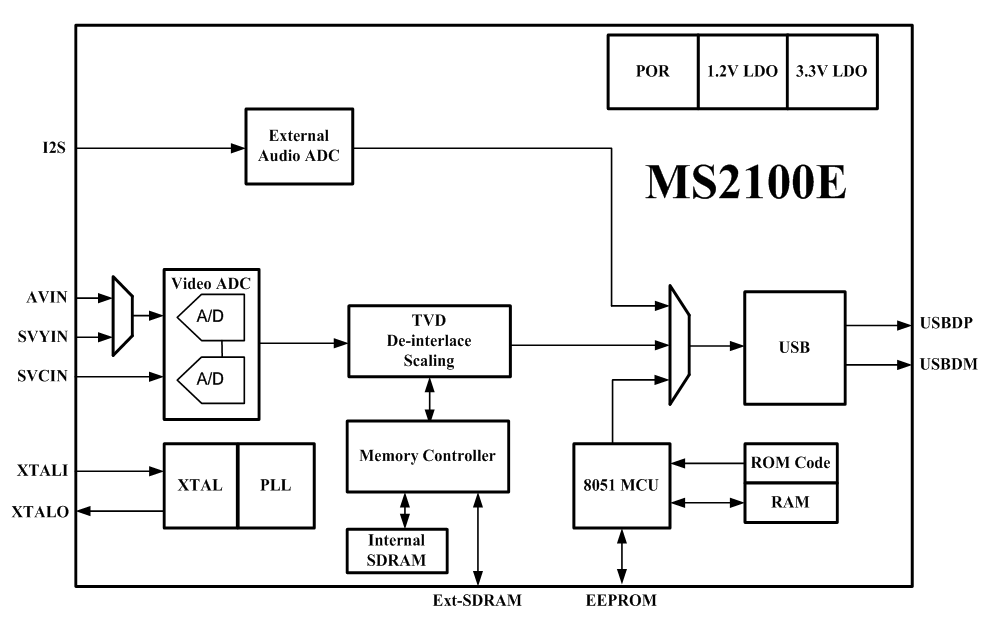

  Function Block Diagram
