MS2100BGA
——————————————————————————————————————————————————————————
MS2100BGA
is a video & audio processor chip. It can convert AV&S-Video signals to
USB signal. It also can covert audio signal to USB signal and USB Video & Audio
signals follow USB UVC&UAC protocol. It can play or recode Video & Audio
signals through USB interface. As the built-in MCU, using the ROM code and
without driver installation, MS2100BGA is very simple to use.
Features
|
Supports AV full format video input |
On-chip ROM/RAM/IO/Timer |
|
Supports S-Video full format video input |
Rom code included |
|
Supports NTSC (J,M, 4.43), PAL (B, D, G, H, I, M, N, 60) |
On-chip high speed USB function |
|
Automatic format & interface detection |
USB video followed UVC protocol |
|
On-chip 3D decoder / De-interlace / Scaler Module |
USB audio followed UAC protocol |
|
Supports Brightness/Contrast/Saturation/Hue adjustment |
Only one 12M crystal needed |
|
Five Output resolutions: 720×480/720×576/ 640×480/320×240/160×120 |
It can output 12.288M clock for external audio ADC |
|
On-chip audio ADC |
On-chip 3.3V&1.2V regulator |
|
Supports external audio ADC |
On-chip power on reset |
|
USB UAC output 48kHz stereo |
BGA (10mm×10mm) |
|
On-chip 1T 8051 MCU |
PB-free and RoHS complain |

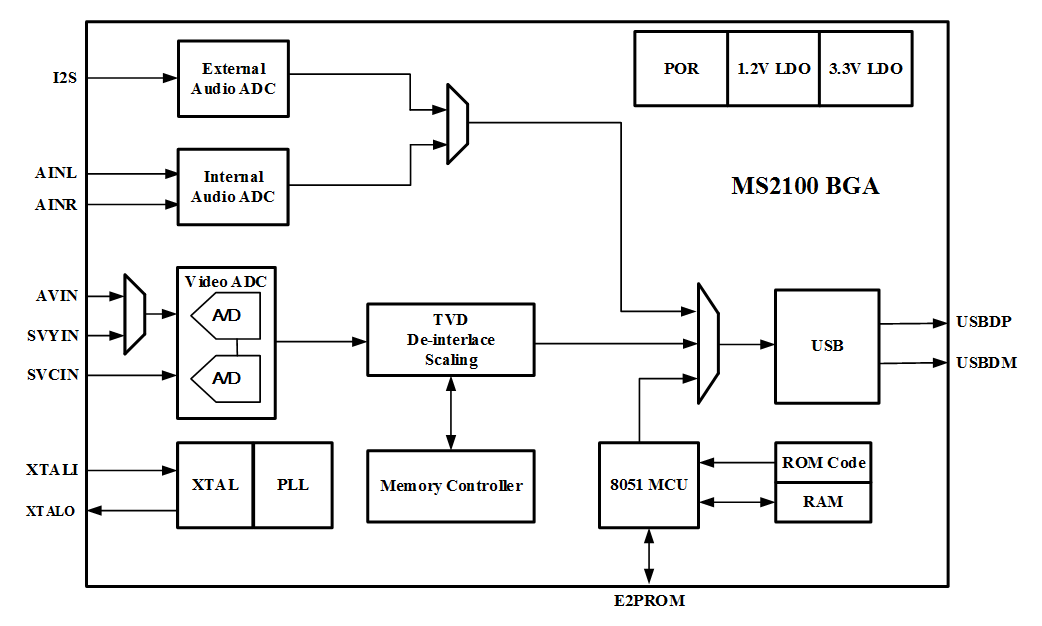

Function Block Diagram
