MS9120
——————————————————————————————————————————————————————————
The MS9120 is a single chip
solution of USB Screen thrower, it integrates USB2.0 device controller &
transceiver, Video DAC, HD transmitter, and Video & Audio process engine.
It can show or extend PC/smart phone/tablet computer screen to larger size
display device through USB interface. It supports VGA/HD/Digital out
/CVBS/S-Video/YPBPR Video output interface.
Features
|
Supports HD output resolution up to 1920x1080@60Hz |
Output channel up to 8(Need Customized ) |
|
Supports EDID/HPD process |
On-chip high speed USB Device |
|
Supports VGA output resolution up to 1920x1080@60Hz |
USB Video process engine |
|
Output resolution up to 1920*1080@60Hz |
USB Audio: UAC speaker 48kHz stereo |
|
Supports 720*480: NTSC M/J/433,PAL_M &720*576: PAL N/B/D/G/H/I CVBS&S-VIDEO output |
Windows 7/8/10/11 |
|
upports YPbPr output resolution up to 1920x1080@60Hz |
Android 5.1 or higher |
|
Supports digital output resolution up to 1920x1080@60Hz |
macOS 10.15 or higher |
|
Supports BT.656 and BT.1120 |
Linux |
|
Supports 8/16/24 bit mode |
Only one 24Mhz crystal needed |
|
Supports YUV444/422,RGB color space |
On-chip PLL |
|
Default 48kHz/16bit stereo |
On-chip 1.2V regulator |
|
I²S and HD output |
On-chip power on reset |
|
Bit-width up to 32bit(Need Customized ) |
LQFP100 (14mm×14mm) |
|
Resolution up to 192khz(Need Customized ) |
PB-free and RoHS complain |

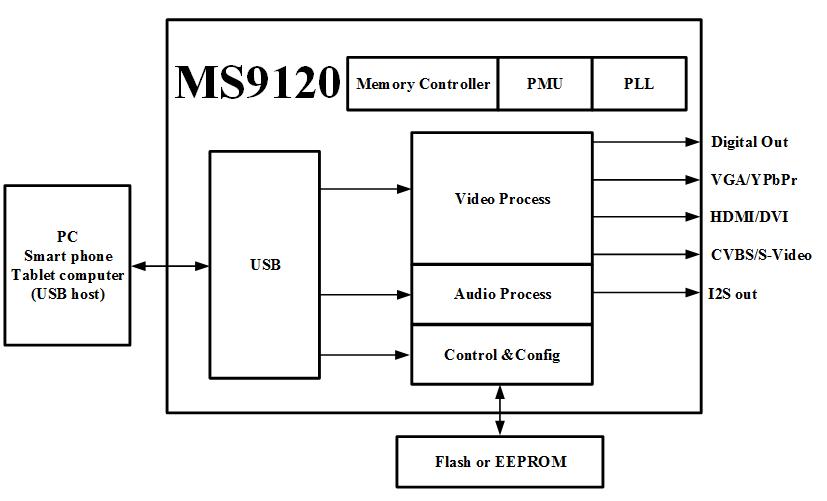

Function Block Diagram
