MS2109S
MS2109S
——————————————————————————————————————————————————————————
MS2109S is a USB2.0 HDMI audio and
video capture and mixing processing chip, which integrates USB2.0 device
controller and data transceiver module, HDMI RX module, audio and video processing
module. MS2109S can transmit the audio and video to PC, smartphone and tablet
computer through USB interface to preview or capture. MS2109S supports two I2S input,
one I2S output and S/PDIF output. MS2109S supports digital audio mixing. MS2109S
USB output supports YUV422 and MJPEG modes, compatible with Windows, Android,
Linux and macOS systems.
Features
|
HDMI RX |
USB video
output resolution |
|
Supports
RGB444, YCBCR444, YCBCR422 and YCBCR420 color space |
Low Latency |
|
Support
deep color 24/30/36-bit mode |
Video capture delay, when the input frame rate is the same as the output's, is close to zero |
|
Support
CEA-861/CEA-861-F video format |
OS Support |
|
Supports HDCP1.4 |
Windows
XP/7/8/10/11 |
|
Maximum input resolution： 4096×2160@30Hz(RGB444/ YCBCR444) 4096×2160@60Hz(YCBCR420) |
Android
5.0 or higher |
|
Audio |
Linux |
|
Default
48kHz stereo output |
macOS |
|
Supports
two I2S input |
Clock |
|
Supports
one I2S output and one S/PDIF output |
External
24MHz passive crystal oscillator |
|
Supports
audio mixing processing for two I2S input and HDMI RX input |
On-chip
PLL |
|
USB2.0 |
Power & Reset |
|
Integrated
USB2.0 device |
On-chip
power on reset |
|
Compatible
with USB1.1 device mode |
On-chip
3.3V LDO |
|
USB
video conforms to UVC1.0 specification |
Package |
|
USB
audio conforms to UAC1.0 specification |
QFN-48
plastic(7mm×7mm) |
|
USB
video output supports both YUV422 and MJPEG modes |
RoHS2.0
compliant |

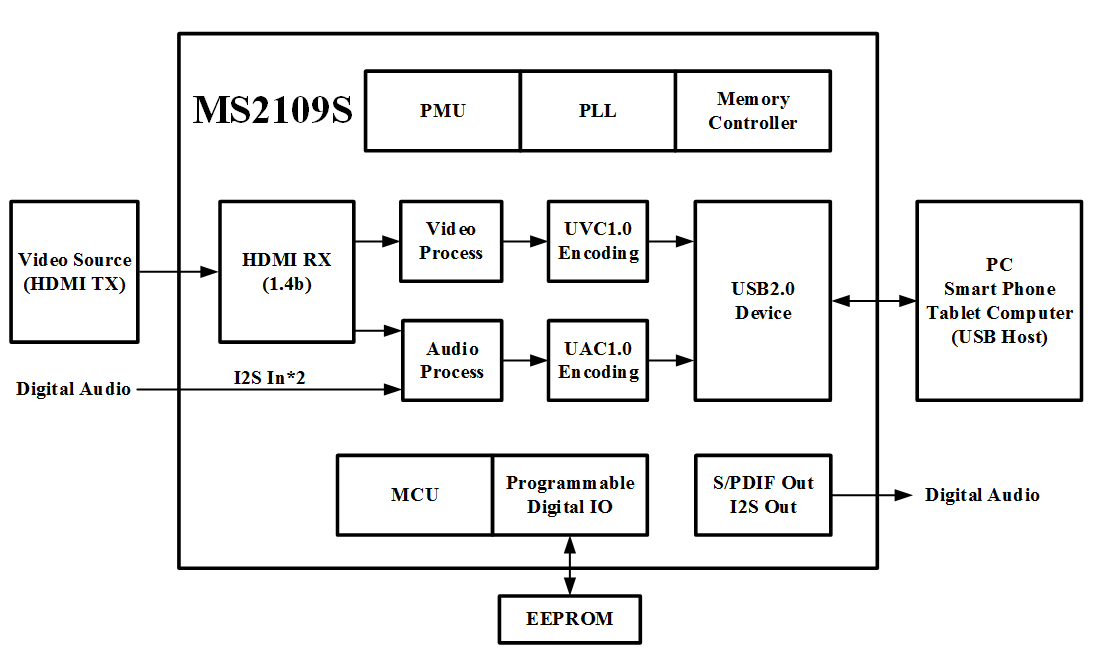

Function Block Diagram
