MS2132

——————————————————————————————————————————————————————————

MS2132 is a USB 3.0 video(4k) and audio capture chip, which integrates USB 3.0 device controller, data transceiver module, video and audio processing module. MS2132 can transmit the HDMI input audio and video signals to PC, smartphone and tablet for preview or acquisition through USB 3.0 interface. MS2132 output supports YUV422, MJPEG, RGB24 and NV12 modes, compatible with Windows, Android and macOS systems.

Features

HDMI RX	USB video supports YUV422, MJPEG, RGB24 and NV12 modes
Supports RGB444, YCBCR422, YCBCR444, YCBCR420 color space	USB video output resolution, default max resolution: 3840 x 2160@60Hz(MJPEG)
HDMI compatible	OS Support
Supports deep color 24/30/36/48 bit mode	Windows XP/7/8/10/11
Supports CEA-861-E, CEA-861-F video format	Android 5.0 and higher
Max input resolution: 3840 x 2160@60Hz YUV444	Linux
Supports HDCP2.3/HDCP1.4	macOS
Audio	Clock
Supports 96kHz/24bit,48kHz/16bit stereo output	External 24MHz passive crystal oscillator
USB audio supports 5.1 channel mode	On-chip PLL
Supports HDMI RX5.1/7.1 channel Audio collection	Reset
USB 3.0	On-chip power on reset
Integrated USB 3.0 device	Package
Compatible with USB 2.0 device mode	QFN-64 plastic(9mm×9mm)
USB video conforms to UVC1.0 specification	RoHS compliant
USB audio conforms to UAC1.0 specification

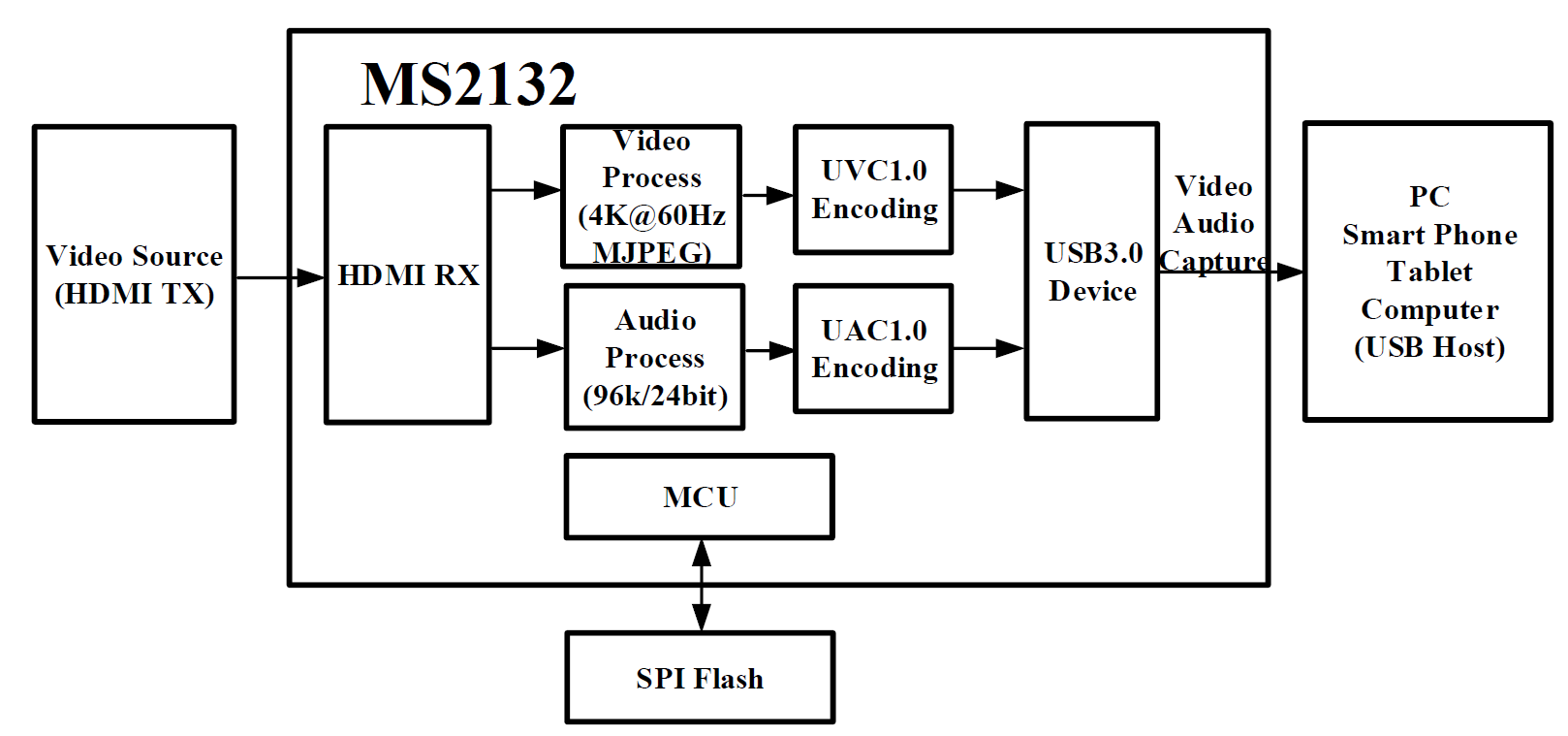

Function Block Diagram
