MS2109
——————————————————————————————————————————————————————————
MS2109 is a HD Video Acquisition Chip, which is
internally integrated with USB2.0 controller and data transceiver module, HD RX
module, Audio and Video Processing module. MS2109 can transmit the Audio and Video
signals by HD interface to PC, Smart Phone or Tablet Computer through USB interface
to preview or collect audio and video information. USB video complies with UVC
specification, Audio complies with UAC specification, and supports Windows /
Android / macOS system.
Features
|
Support RGB444, YCBCR422, YCBCR444, YCBCR420 color space |
USB Video supports customized resolution output |
|
Support deep color 24/30/36 bit mode |
Support digital audio interface I²S input |
|
Support CEA-861 /CEA-861-F video format |
On-chip high speed USB Device |
|
Max input resolution 3840×2160@30Hz |
Support descriptor customization |
|
Support YUV&JPEG mode |
Windows XP,7,8,10 |
|
Max output resolution: 1920×1080@30Hz |
Andriod5.0 or Higher |
|
Support user customized resolution |
macOS |
|
Compatible with USB1.1 mode |
Only one 24MHz crystal needed |
|
Compatible with UVC1.0 protocol |
On-chip PLL |
|
Support SPDIF output |
On-chip power on reset |
|
USB Audio conforms to UAC1.0 specification |
QFN48 (7mm×7mm) |
|
USB Audio default 96KHz mono output |
Pb-free and RoHS compliant |

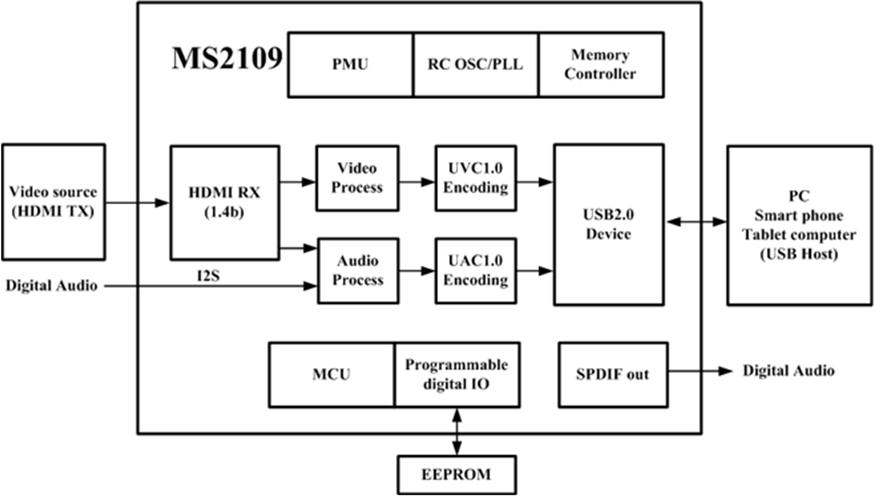

Function Block Diagram
