MS7210
——————————————————————————————————————————————————————————
The
MS7210 is an advanced HD transmitter that supports 4K@30Hz 3D specification, supporting
input resolution up to 4K@30Hz, with a high speed TMDS core running up to
300MHz. The MS7210 provides efficient color space conversion which can receive
RGB or YCBCR video data and sends video data in RGB or YCBCR format. The MS7210
supports HD audio transmission through IIS or SPDIF interface. SPDIF interface
can support the transmission of compressed audio compliant with IEC61937 and
that of High-Bit-audio with sample frame rate up to 768K.The MS7210 IIC slave
address is decided by the SA pin. When SA pin is pull-up or floating, the slave
address is 0xB2; when connected to GND, the slave address is 0x56.
Features
Support
input and output resolution up to 4K@30Hz
Up/down
sampling betweenYUV444 and YUV422
TMDS
clock up to 300MHz
10/12-bit
to 8-bit deep color conversion
HD 3D format
Four
IIS interface output
High
Bit Audio（HBR） format
IIS Channel
swap
Internal CEC engine
IIS
sample rate up to 192KHz
Programmable EDID buffer
IIS
Sample size up to 24 bit
24-bit RGB/YUV444 format
SPDIF
output with PCM and compressed audio format
8/10/12/ bit YUV422 format
IIC
interface
16/20/24 bit YUV 422 format
27MHz
External crystal
DDR/SDR mode
INT# Interrupt
pin
Channel swap and MSB/LSB swap
Chip
slave address selection
Support BT.601,BT656,BT.1120,BTA-T1004 digital format
Widely
voltage digital I/O from 1.8V to 3.3V
Support separate SYNC and embedded SYNC
1.2V
Core Power
Support DE only mode
QFN64 (9mm×9mm)
Color
space conversion
PB-free
and RoHS complain

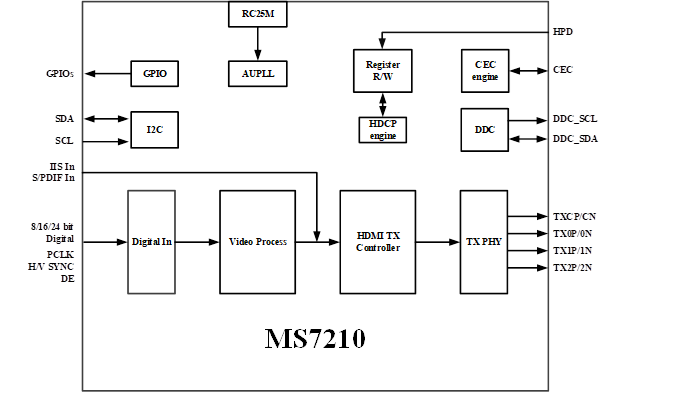

Function Block Diagram
