MS9288A
——————————————————————————————————————————————————————————
MS9288A is a low-cost, low-power, high performance device, which consists of HD Transmitter, three 10-bit video Analog-to-Digital Converters and audio encoder, which can convert VGA or YPbPr signal to HD, maximum conversion rate of 165MHz. MS9288A support L/R audio input.MS9288A with embedded MCU and ROM code.
Features
|
Triple 10-bit ADC |
Support Hot Plug |
|
Maximum analog sampling rate up to 165MHz |
Black/White level expansion |
|
Support analog input range:0.45~1.1(P-P) |
Color transition improvement |
|
Auto offset/phase adjustment |
Dynamic peaking |
|
Support Sync-on-Green(SOG) |
Brightness, Saturation, Contrast, HUE adjustment |
|
VGA/YPbPr auto detection |
Support I²C slave Interface |
|
Double channel 24-bit ADC |
I²C master interface for DDC control |
|
Sample rate is 48KHz |
Support external crystal at 24.576MHz |
|
Support input and output resolution up to 1080P@60Hz |
QFN48 (6mm×6mm) |
|
The operating speed is 165MHz |
3.3V and 1.8V power supply |
|
Support 24-bit color depth and Resolutions up to 1080P@60Hz |
|

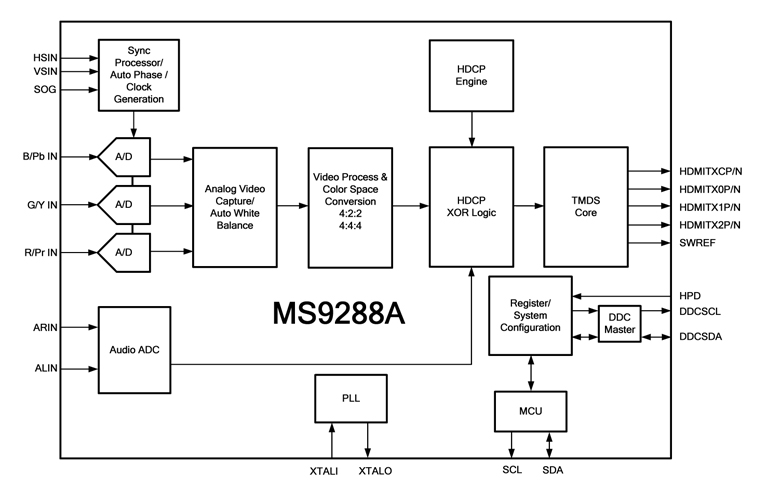

Function Block Diagram
