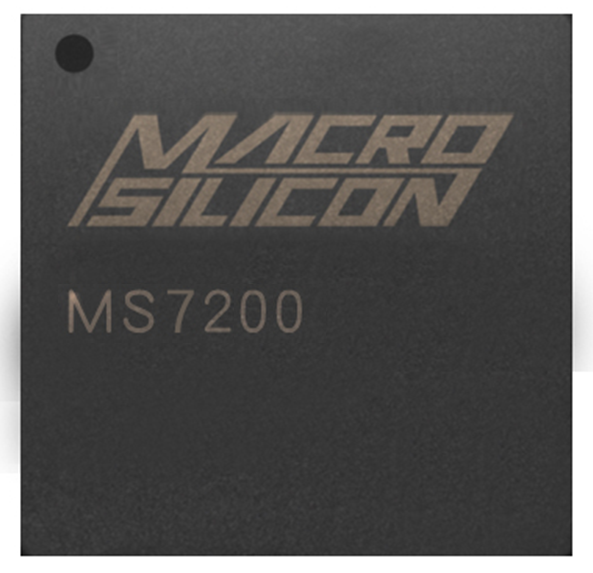

MS7200
——————————————————————————————————————————————————————————
The MS7200 is an advanced HD receiver that
supports 4K@30Hz 3D specification, supporting output video format up to 4K
resolution and 30Hz, with a high speed TMDS core running up to 300MHz. The MS7200
provides efficient color space conversion which can receive RGB or YCBCR video
data and send video data in RGB or YCBCR format. The MS7200 supports HD audio
transmission through IIS or SPDIF interface. SPDIF interface can support the transmission
of compressed audio compliant with IEC61937 and that of High-Bit-audio with
sample frame rate up to 768K. An integrated EDID can be programmed at the time
of manufacture using IIC interface. IIC slave address is decided by the SA pin.
When SA pin is pull-up or floating, the slave address is 0xB2; when connected
to GND, the slave address is 0x56.
Features
Support
input resolution up to 4K@30Hz
10/12-bit
to 8-bit deep color conversion
TMDS
clock up to 300MHz
Two
IIS interface output
HD
3D format
Channel
swap
High
Bit Audio（HBR） format
IIS
sample rate up to 192KHz
Internal
CEC engine
IIS
Sample size up to 24 bit
Programmable
EDID buffer
SPDIF
output with PCM and compressed audio format
24-bit
RGB/YUV444 format
IIC
interface
8/16-bit
YUV422 format
27MHz
External crystal
DDR/SDR
mode
INT#
Interrupt pin
Channel
swap and MSB/LSB swap
Chip
slave address selection
Support
BT.601,BT656,BT.1120,BTA-T1004 digital format
Widely
voltage digital I/O from 1.8V to 3.3V
Support
separate SYNC and embedded SYNC
1.2V
Core Power
Color
space conversion
QFN76
(9mm×9mm)
Up/down
sampling betweenYUV444 and YUV422
PB-free
and RoHS complain

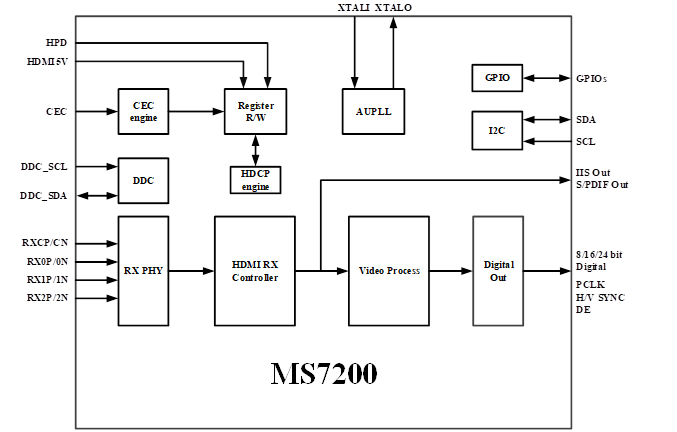

Function Block Diagram
