MS9604
——————————————————————————————————————————————————————————
The
MS9604 is a HD video processor chip. It consists of 4 independent channel HD
input and 4 independent channel HD output, also includes 1 channel I²S &
SPDIF digital audio input or output. In all video input & output channels,
it provides a high quality display output. The highest resolution supports 4K@30Hz. OEMs can easily design a low cost and high quality
system solution by MS9604’s high integration and Software support.
Features
|
4 independent channel for both input and output |
|
Up to 4K@30Hz |
|
Signal range: 500mV |
|
Support extensive video format: CEA-861-F, VESA |
|
Support RGB/YCbCr444/YCbCr422 color space |
|
Support RGB/BT601/BT709 colorimetric standard |
|
Support 8/10/12/16 bits color depth |
|
Input video timing & info frame auto detection |
|
Embedded programmable 512 bytes (maximum) EDID |
|
Input HPD programmable & output HPD auto detection |
|
Input auto EQ |
|
Audio sample rate from 32KHz to 192KHz |
|
Supports one channel SPDIF & I²S digital audio |

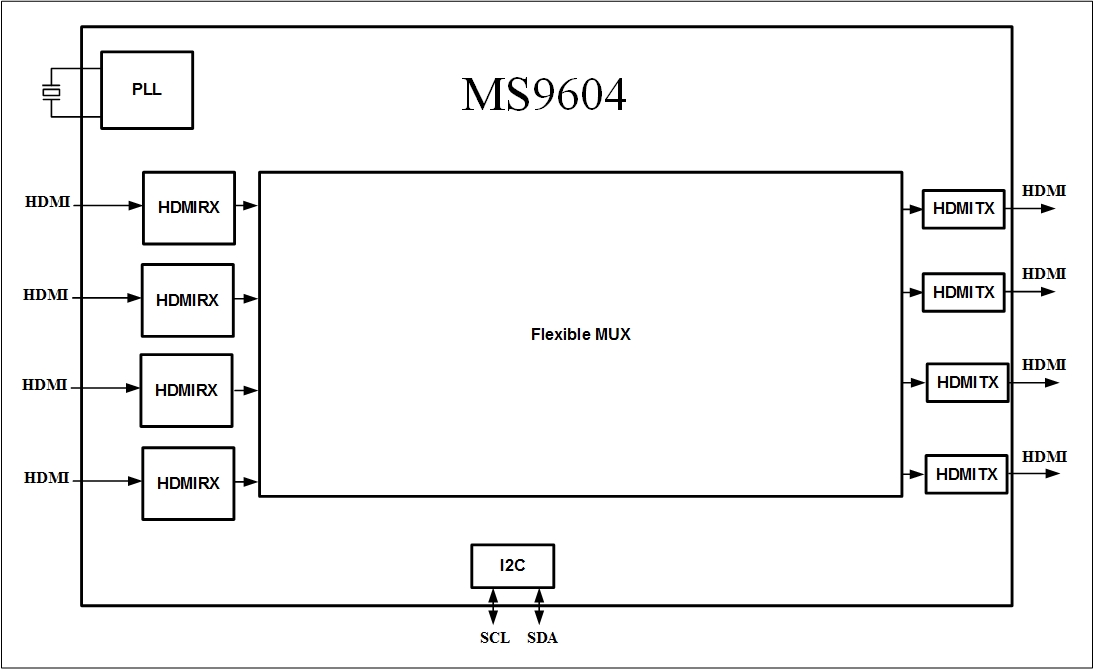

Function Block Diagram
