MS2130S
——————————————————————————————————————————————————————————
MS2130S is a USB 3.0 HDMI video and audio capture chip, which integrates USB 3.0 device controller, data transceiver module, video and audio processing module. MS2130S can transmit the HDMI input audio and video signals to PC, smartphone and tablet for preview or acquisition through USB 3.0 interface. MS2130S output supports YUV422, MJPEG, RGB24 and NV12 modes, compatible with Windows, Android and macOS systems.
Features
|
HDMI RX |
USB video supports YUV422,
MJPEG, RGB24 and NV12 modes |
|
Supports RGB444, YCBCR422,
YCBCR444, YCBCR420 color space |
USB video output resolution,
default max resolution: 3840 x 2160@60Hz(MJPEG) |
|
Supports deep color
24/30/36bit mode |
OS Support |
|
Supports CEA-861-E,
CEA-861-F video format |
Windows XP/7/8/10/11 |
|
Max input resolution: 4096
x 2160@60Hz YUV420, 4096 x 2160@30Hz YUV444 |
Android 5.0 and higher |
|
Support HDCP1.4 |
Linux |
|
Audio |
macOS |
|
Supports
96kHz/24bit,48kHz/16bit stereo output |
Clock |
|
USB audio support 5.1
channel mode |
External 24MHz passive
crystal oscillator |
|
Supports HDMI RX5.1/7.1 channel
collection |
On-chip PLL |
|
USB 3.0 |
Reset |
|
Integrated USB 3.0 device |
On-chip power on reset |
|
Compatible with USB 2.0
device mode |
Package |
|
USB video conforms to
UVC1.0 specification |
QFN-64 plastic(9mm×9mm) |
|
USB audio conforms to
UAC1.0 specification |
RoHS compliant |

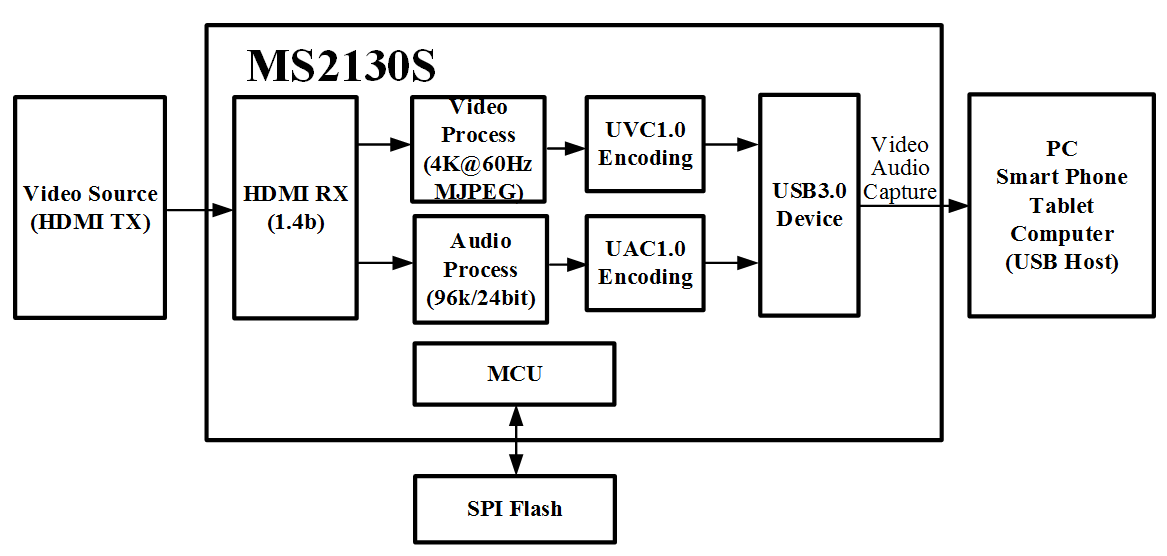

Function Block Diagram
