MS9337
——————————————————————————————————————————————————————————
The
MS9337 is a one-to-seven active splitter that supports a signaling rate up to
3.0Gbps. With 3.0Gbps capability, the MS9337 can support the new 4K@30Hz video
format and 4K(YCbCr420) @60Hz. The MS9337 equalizes incoming TMDS data with
optimal quality regardless of the incoming signal quality. The highly acclaimed
equalization technology provides for support of long or low-quality HDMI cables
at even the highest speeds. Input terminations of the TMDS inputs and output
current levels are both programmable. The chip also supports on-chip HDCP Keys RAM
and EDID Memory.
Features
|
Compliant with HDMI 1.4b and DVI 1.0 |
|
Support One Port DVI/HDMI input，Seven Port DVI/HDMI output |
|
Support HDMI 4K@30Hz and HDMI 2.0 YCbCr420 4K@60Hz |
|
Support I2S and SPDIF Output |
|
Support audio sample rate 32KHz-192KHz |
|
Adaptive input equalization |
|
Output Pre-emphasis |
|
Support 10/12/16 bit Deep Color input/output |
|
Automatically monitor HDMI input signal |
|
Support 5V TTL DDC |
|
Integrated pre-programmed HDCP keys |
|
Embedded EDID RAM saves external EDID ROM costs |
|
No external crystal oscillations are required |
|
HLQFP216 (24mm×24mm) |

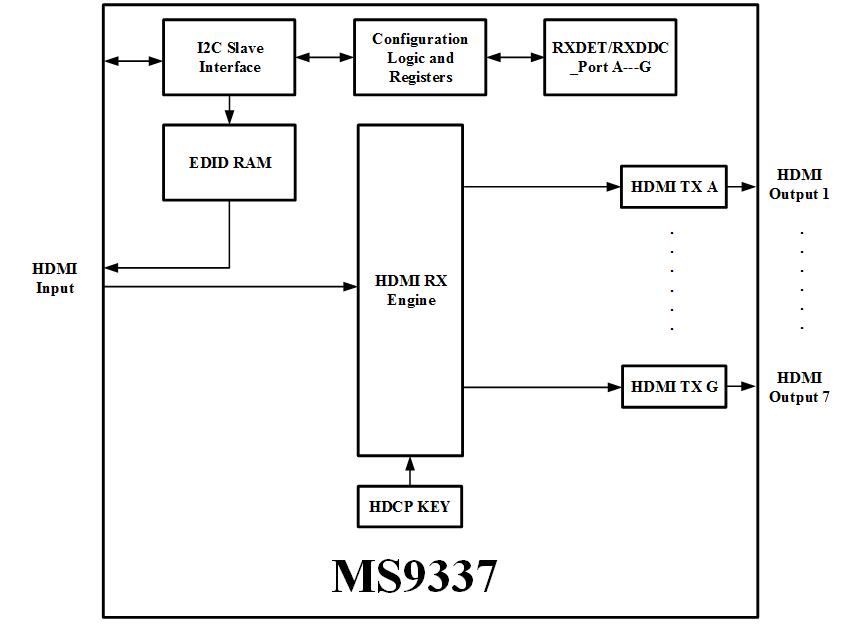

Function Block Diagram
