MS9332
MS9332
——————————————————————————————————————————————————————————
The
MS9332 is a one-to-two active splitter that supports a signaling rate up to
3.0Gbps. With 3.0Gbps capability, the MS9332 can support the new 4K@30Hz video
format. The MS9332 equalizes incoming TMDS data with optimal quality regardless
of the incoming signal quality. The highly acclaimed equalization technology
provides for support of long or low-quality HDMI cables at even the highest
speeds. Input terminations of the TMDS inputs and output current levels are
both programmable. The chip also supports on-chip HDCP Keys RAM and EDID
Memory.
Features
|
Compliant with HDMI 1.4b |
|
Support One Port input，2 Port output |
|
Support HDMI 4K@30Hz |
|
Adaptive input equalization |
|
Output Pre-emphasis |
|
Support 10/12/16 bit Deep Color input/output |
|
Automatically monitor HDMI input signal |
|
Automatically monitor the status of HDMI output devices |
|
Support 5V TTL DDC |
|
Integrated pre-programmed HDCP keys |
|
Embedded EDID RAM saves external EDID ROM costs |
|
No external crystal oscillations are required |
|
LQFP64 (10mm×10mm) |

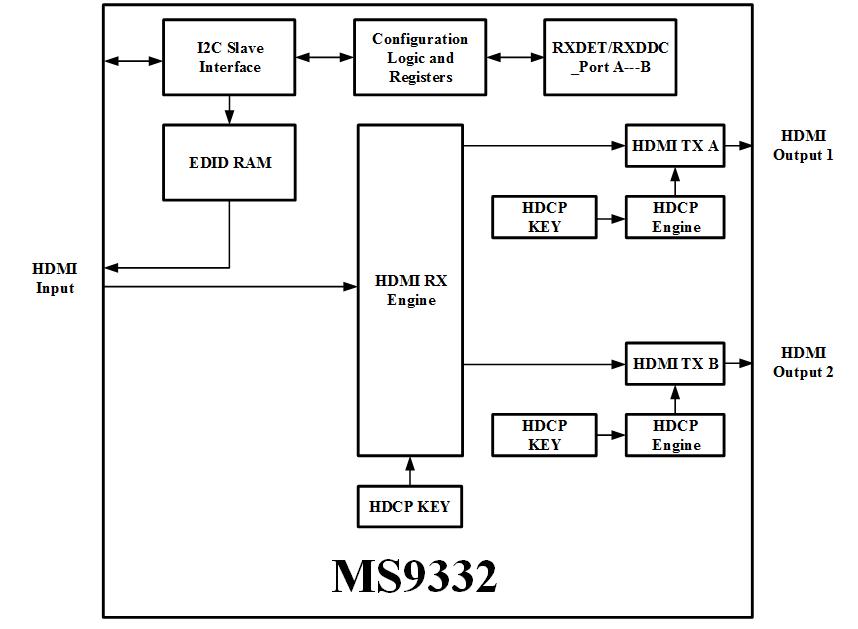

Function Block Diagram
