MS9331
——————————————————————————————————————————————————————————
The MS9331
is a HD retime IC that supports a signaling rate up to 3.0Gbps and I²S
& SPDIF output. With 3.0Gbps capability, the MS9331 can support 4K@30Hz.
The MS9331 equalizes incoming TMDS data with optimal quality regardless of the
incoming signal quality. The highly acclaimed equalization technology provides
for support of long or low-quality HD cables at even the highest speeds. Input
terminations of the TMDS inputs and output current levels are both
programmable. The chip also supports on-chip EDID Memory.
Features
|
Support 4K@30Hz |
|
Support 1 Port HD input,1 Port HD output |
|
Support 4K@60Hz YCbCr420 |
|
Support I²S and SPDIF output |
|
Audio output sample rate 32KHz---192KHz |
|
Support all compressed and uncompressed audio format |
|
Adaptive input equalization |
|
Output Pre-emphasis |
|
Support 10/12/16 bit Deep Color input/output |
|
Automatically monitor HD input signal |
|
Automatically monitor the status of HD output devices |
|
Support 5V TTL DDC |
|
Embedded EDID RAM saves external EDID ROM costs |
|
No external crystal oscillations are required |
|
QFN48 (6mm×6mm) |

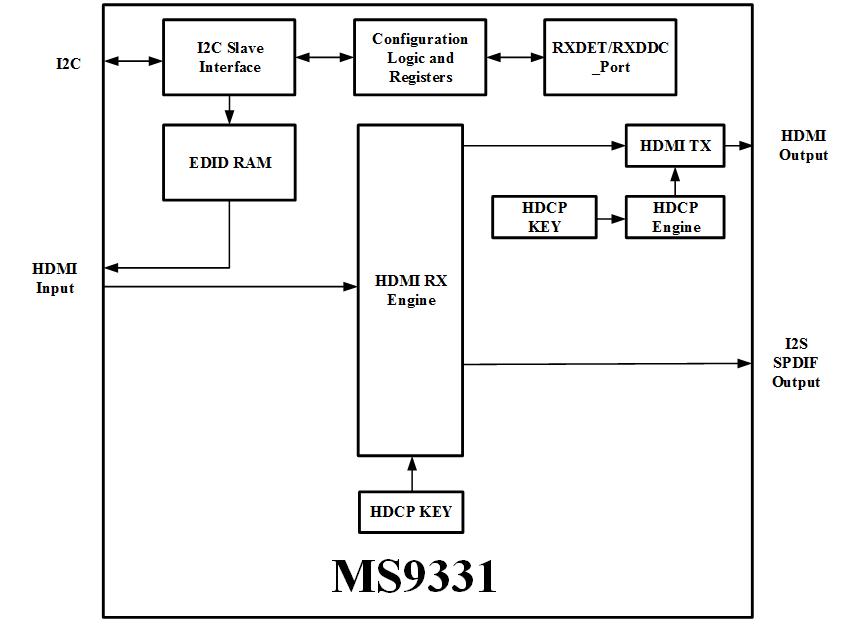

Function Block Diagram
