MS9334
——————————————————————————————————————————————————————————
The
MS9334 is a one-to-four active splitter that supports a signaling rate up to
3.0Gbps. With 3.0Gbps capability, the MS9334 can support the 4K@60Hz YCbCr420.
The MS9334 equalizes incoming TMDS data with optimal quality regardless of the
incoming signal quality. The highly acclaimed equalization technology provides
for support of long or low-quality HD cables at even the highest speeds. Input
terminations of the TMDS inputs and output current levels are both
programmable. The chip also supports on-chip EDID Memory.
Features
|
Support 4K@30Hz |
|
Support 1 Port HD input, 4 Port HD output |
|
Support 4K@60Hz YCbCr420 |
|
Adaptive input equalization |
|
Output Pre-emphasis |
|
Support 10/12/16 bit Deep Color input/output |
|
Automatically monitor HD input signal |
|
Automatically monitor the status of HD output devices |
|
Support 5V TTL DDC |
|
Embedded EDID RAM saves external EDID ROM costs |
|
No external crystal oscillations are required |
|
LQFP100 (14mm×14mm) |

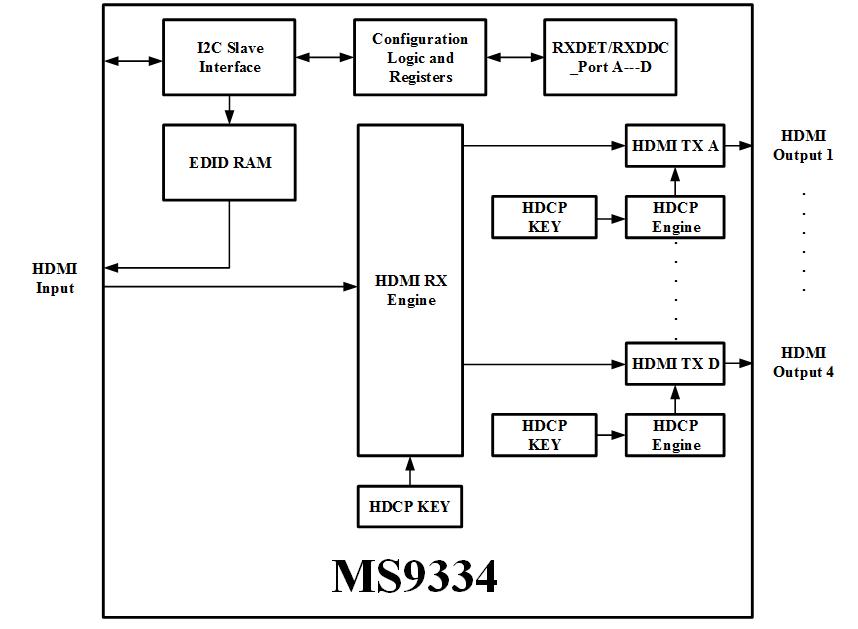

Function Block Diagram
