MS9333
——————————————————————————————————————————————————————————
The
MS9333 is a one-to-two active splitter that supports a signaling rate up to
3.0Gbps and I2S & SPDIF output. With 3.0Gbps capability, the MS9333 can
support the new 4K@30Hz video format. The MS9333 equalizes incoming TMDS data
with optimal quality regardless of the incoming signal quality. The highly
acclaimed equalization technology provides for support of long or low-quality
HDMI cables at even the highest speeds. Input terminations of the TMDS inputs
and output current levels are both programmable. The chip also supports on-chip
HDCP Keys RAM and EDID Memory.
Features
|
Compliant with HDMI 1.4b |
|
Support One Port input,2 Port output |
|
Support HDMI 4K@30Hz |
|
Support I2S and SPDIF output |
|
Audio output sample rate 32KHz---192KHz |
|
Adaptive input equalization |
|
Output Pre-emphasis |
|
Support 10/12/16 bit Deep Color input/output |
|
Automatically monitor HDMI input signal |
|
Automatically monitor the status of HDMI output devices |
|
Support 5V TTL DDC |
|
Integrated pre-programmed HDCP keys |
|
Embedded EDID RAM saves external EDID ROM costs |
|
LQFP64 (10mm×10mm) |

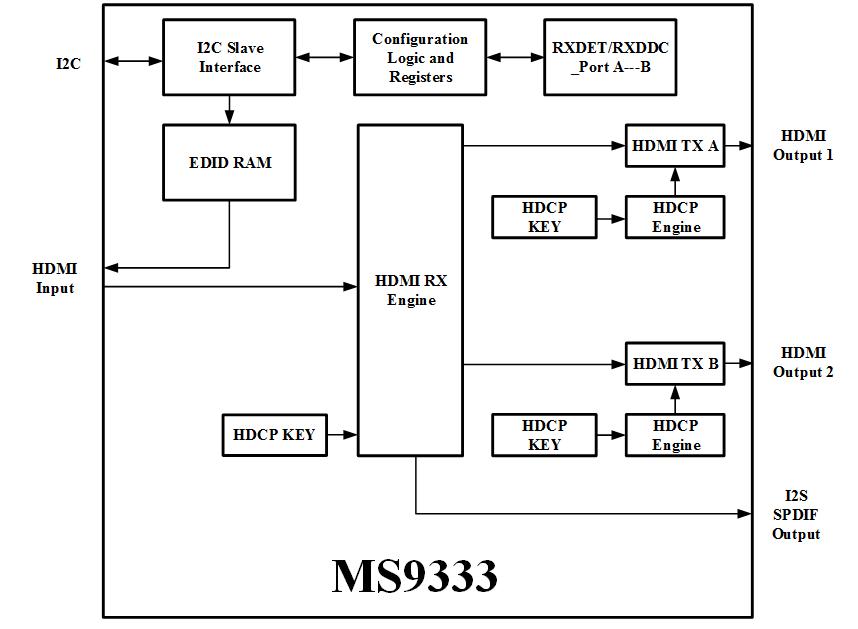

Function Block Diagram
