MS9122
——————————————————————————————————————————————————————————
The
MS9122 is a single chip solution for USB Screen thrower, it integrates USB2.0
device controller & transceiver, HDMI transmitter, and Video & Audio
process engine. It can show or extend PC/smart phone/tablet computer screen to
larger size display device through USB interface. It supports HDMI video output
interface.
Features
|
HDMI v1.4compliant |
|
Output resolution up to1920×1080@60Hz |
|
Supports EDID/HPD process |
|
Supports DVI mode |
|
Default 48kHz/16bit stereo |
|
I2S and HDMI output |
|
On-chip high speed USB Device |
|
USB Video process engine |
|
USB Audio: UAC speaker 48kHz stereo |
|
Windows XP, 10 |
|
Andriod5.0 and Higher |
|
Only one 24Mhz crystal needed |
|
On-chip PLL |
|
On-chip 3.3V&1.2V regulator |
|
On-chip power on reset |
|
QFN48 (7mm× 7mm) |

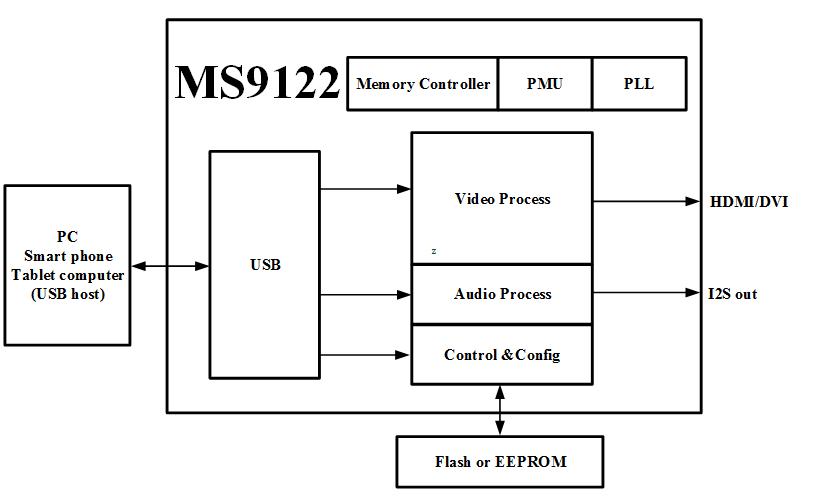

Function Block Diagram
