MS1836S
——————————————————————————————————————————————————————————
The
MS1836S is a single chip HDMI to CVBS/S-Video converter with embedded MCU and
memory. It consists of HDMI receiver, NTSC/PAL encoder with 10-bit Video DAC
for output, with 10-bit Audio DAC, integrated OSD function. It is capable of
video enhancement, 3D noise reduction, brightness/saturation/sharpness and hueadjustment,
which can help the designer acquire the required video quality. No programming
technology can help customers to reduce production cost and cycle.
Features
|
Support HDMI 1.4b/DVI 1.0 |
Supports CVBS and S-Video output |
|
Max Resolution up to 4K@60Hz for YUV420 |
Supports NTSC(J,M,4.43) and PAL(B,D,G,H,I,M,N,Nc,60) |
|
Support HDCP 1.4 |
Support Industry-standard SPDIF output |
|
Support 8/10/12/16-bit color depth |
Supports Compressed Dolby Digital, DTS digital audio Transmission |
|
Input format auto detection |
Supports sample rate at |
|
Auto-mode Detection |
32K/44.1K/48K/88.2K/96K/176.4K/192K sample rate |
|
Auto Position (Blank) Detection |
Support Analog Stereo Audio Output |
|
Black/white level expansion |
On-chip MCU |
|
Frame rate conversion |
On-chip ROM/RAM/IO/Timer |
|
Independent horizontal and vertical scaling up and down from (1/8)x to 8x |
Internal ROM code and external MCU or EEPROM for customization |
|
Color transition improvement |
On-chip power on reset |
|
Dynamic peaking |
27MHz External Crystal |
|
Brightness, saturation, contrast and hue adjustable |
QFN48 (7mm×7mm) |
|
10-bit triple-DAC for component video output |
PB-free and RoHS complain |

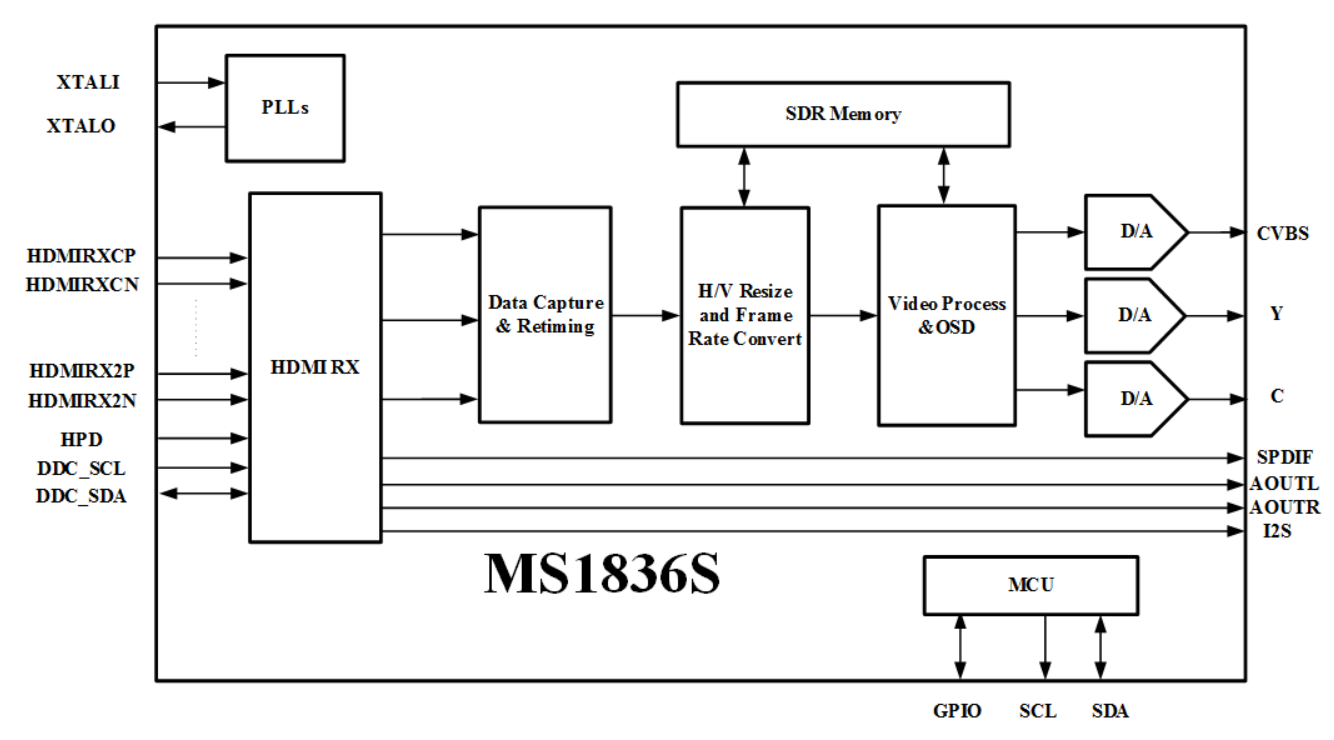

Function Block Diagram
