MS9125
——————————————————————————————————————————————————————————
The
MS9125 is a single chip solution of USB Screen thrower. It integrates USB2.0
device controller & transceiver, Video DAC, HD transmitter, and Video &
Audio process engine. It can show or extend PC, smart phone, tablet computer
screen to larger size display device through USB interface. It supports VGA and
HD output interface.
Features
|
Supports
HD output resolution up to 1920x1080@60Hz |
Supports
VGA output resolution up to 1920x1080@60Hz |
|
Supports
EDID/HPD process |
Default
48kHz/16bit stereo |
|
I²S
and HD output |
On-chip
high speed USB Device |
|
USB
Video process engine |
USB
Audio: UAC speaker 48kHz stereo |
|
Windows
7/8/10/11 |
Android
5.1 or higher |
|
macOS
10.15 or higher |
Linux |
|
Only
one 24Mhz crystal needed |
On-chip
PLL |
|
On-chip
3.3V&1.2V regulator |
On-chip
power on reset |
|
LQFP64
(10mm×10mm) |
|

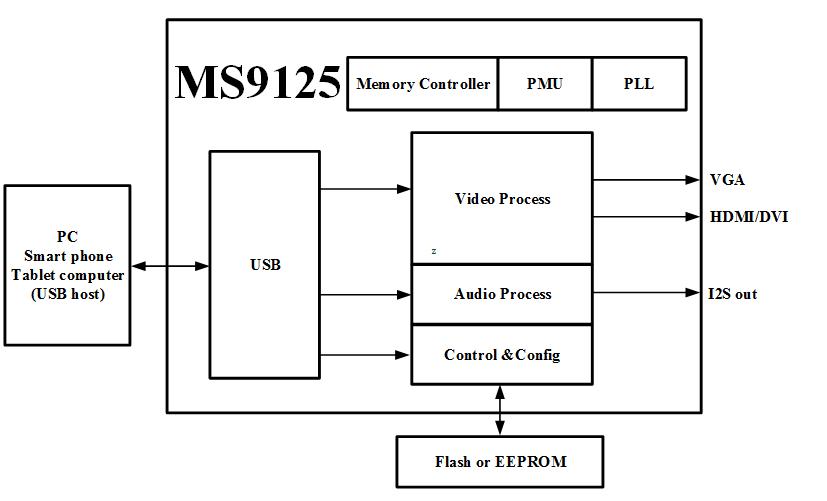

Function Block Diagram
